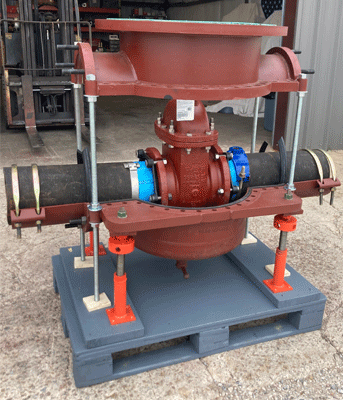

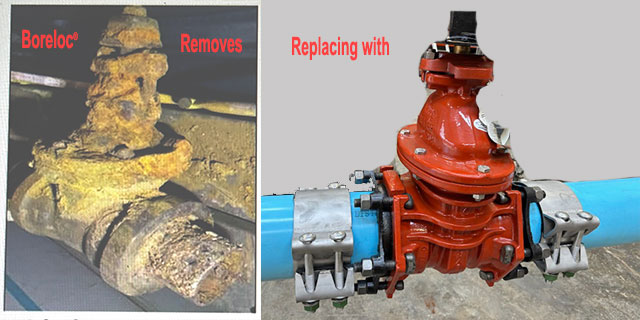

BoreLoc® Municipal A-0259

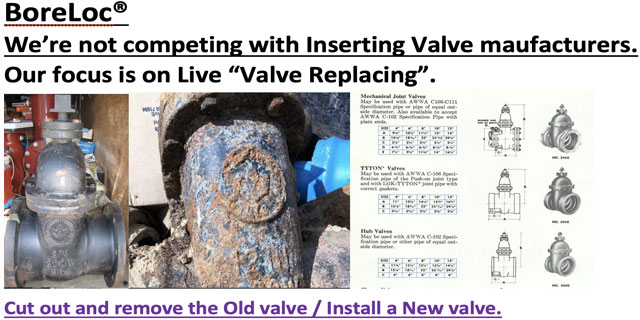

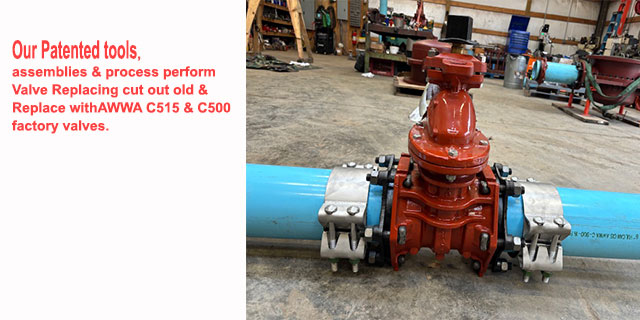

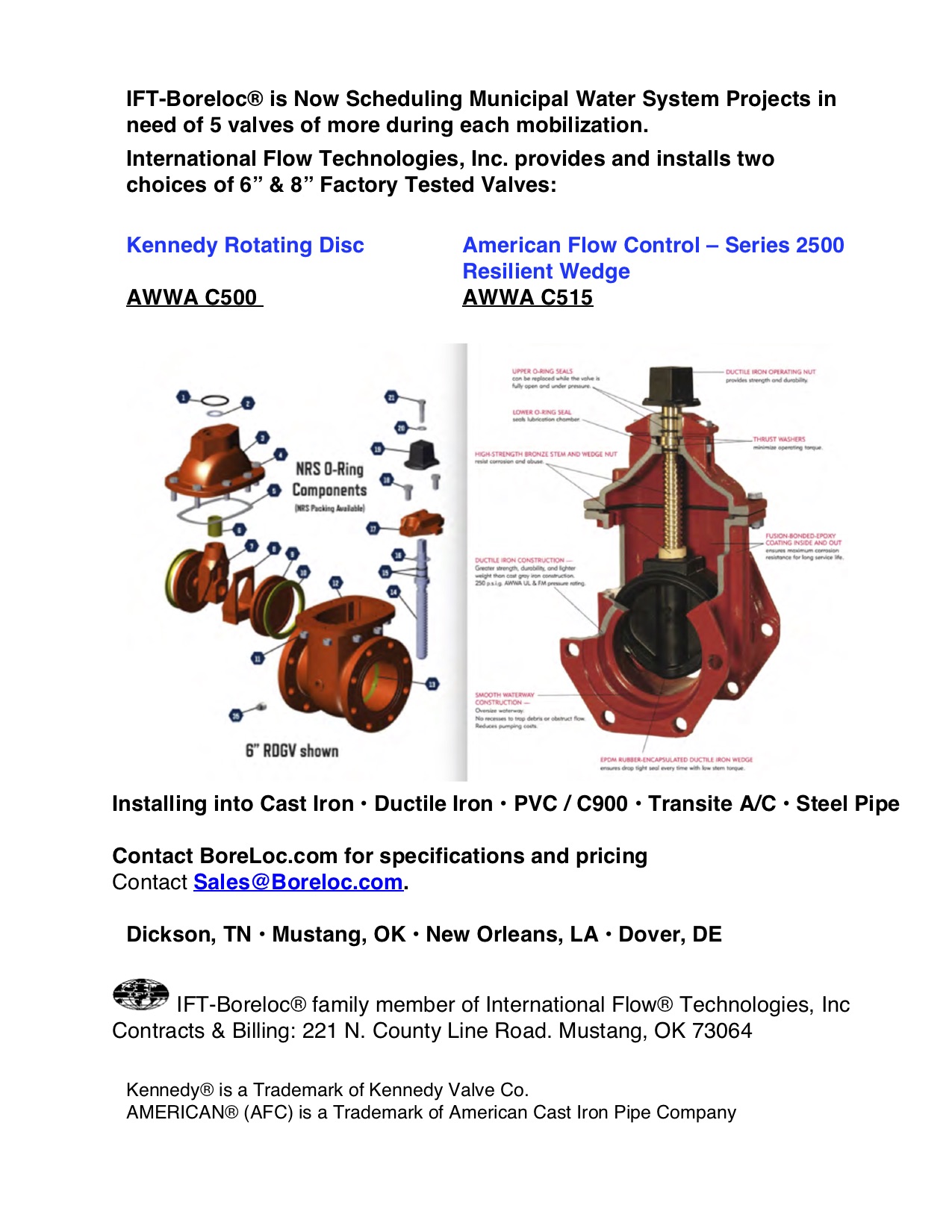

True AWWA C515 Gate Valves for Insertion Services

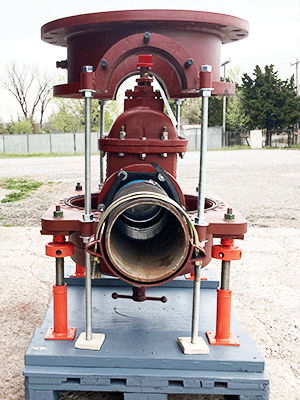

Factory Assembled / Tested & Installed that way.
- 100% Bubble tight Shutdown
- 10 Year Limited Warranty
- UL Listed / FM Approved
- USA Built / Available in AIS
- “Traveling Wedge” & “Body Collars” Patents Pending
- Short bury height & Light weight
- 250 psi working pressure / 500 Shell test
- Certified to ANSI/NSF 61 & 372

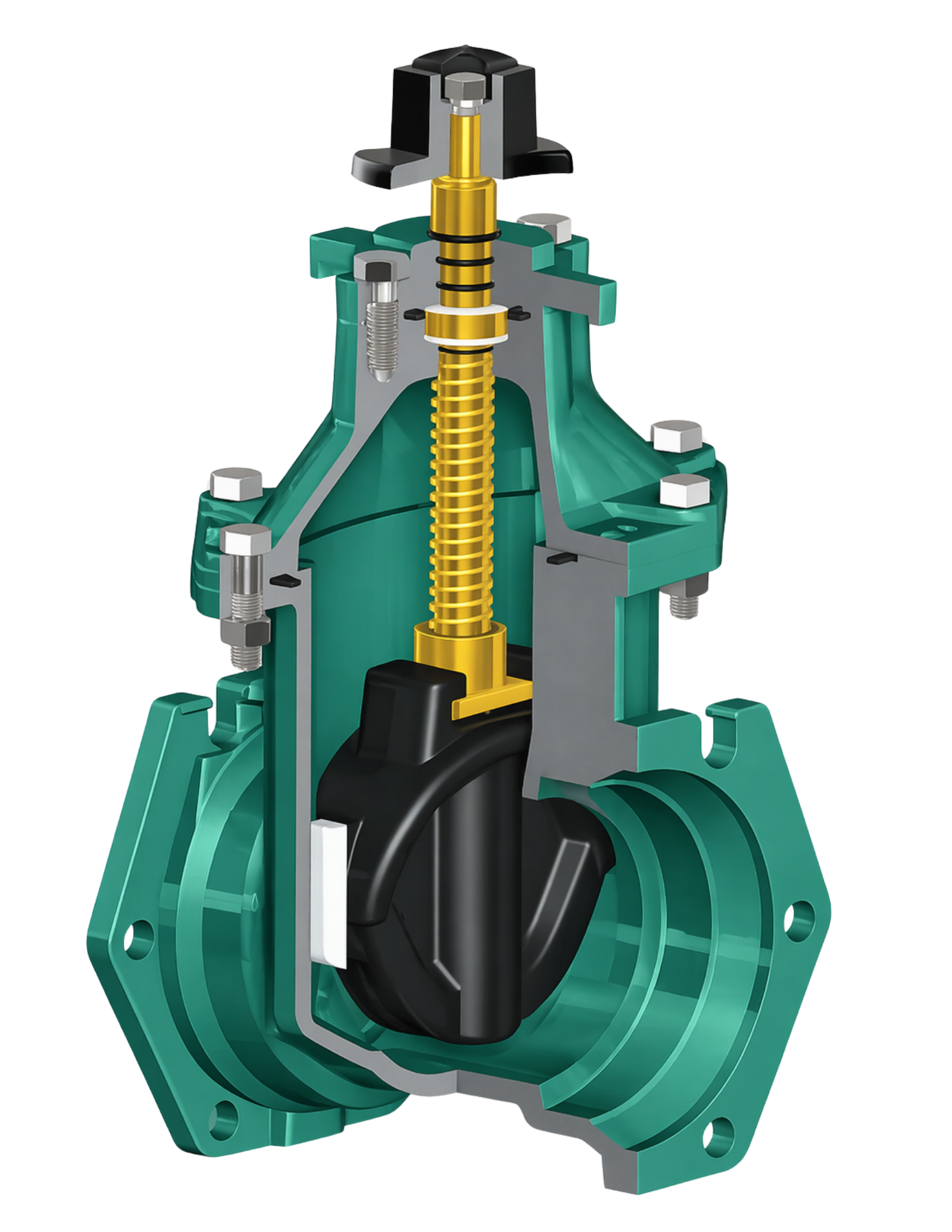

- Ductile Iron Body and Bonnet
- Manganese Bronze non-rising stem
- Rubber encapsulated Ductile Iron Gate
- Fusion epoxy coating per AWWA C550
- AWWA Gate Valve C515 standards
Available in Left Hand and Right Hand Open

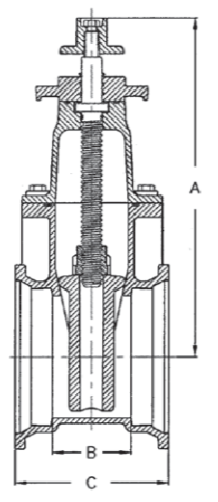

Dimensions & Weights
| Size | Approx. Weight (lbs) | A (inches) | C (inches) |
|---|---|---|---|
| 4" | 63 | 15.00 | 9 5/16 |
| 6" | 104 | 18 9/16 | 9 |
| 8" | 176 | 22 11/16 | 10 1/4 |
| 10" | 270 | 27 | 11 5/8 |
| 12" | 405 | 31 1/8 | 13 |
Installed by International Flow® Technologies, Inc.
